UPD61051 Datasheet - NEC

UPD61051 - (UPD61052) MPEG2 Audio / Video Encoder

DATA SHEET MOS INTEGRATED CIRCUIT µPD61051, 61052 MPEG2 AUDIO/VIDEO ENCODER The µPD61051 and µPD61052 are LSIs of MPEG audio and video encoding, decoding and transcoding.

The µPD61051 has MPEG2 video encoder, MPEG audio encoding DSP, 32-bit RISC CPU, video input/output unit which contains a processing filter and a time base corrector (TBC), and MPEG system layer which contains the multiplexer and de-multiplexer.

It combines with 64 M or 128 Mbit SDRAM and it uses.

The µPD61052 has a Dolby™ Dig

UPD61051 Features

* Video encode - Stream standard: MPEG2 video MP@ML, SP@ML standard, MPEG1 standard Picture size: Horizontal: 720, 704, 544, 480, 352 dots/line Vertical: 480, 240, 576, 288 line/frame Bit rate conversion, VBR ⇔ CBR Single pass variable bit rate (VBR), constant bit rate (CBR) encoding Tran

UPD61051_NEC.pdf

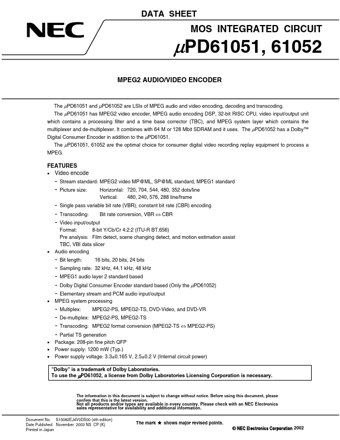

Preview of UPD61051 PDF
UPD61051 Datasheet Preview Page 2 UPD61051 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD61051

Manufacturer:

NEC

File Size:

666.27 KB

Description:

(upd61052) mpeg2 audio / video encoder.
