UPD6122 - REMOTE CONTROL TRANSMISSION CMOS IC

NEC

📥 Download Datasheet

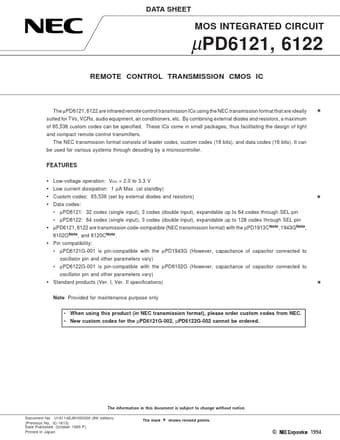

UPD6122 Datasheet Preview — Preview of UPD6122 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: UPD6122
Manufacturer: NEC
File Size: 170.50 KB
Datasheet: UPD6122_NEC.pdf
Description: REMOTE CONTROL TRANSMISSION CMOS IC

UPD6122 Product details

Description

Standard (Ver I spec.) Standard (Ver II spec.) Standard (Ver I spec.) Standard (Ver II spec.) PIN

Features

Low-voltage operation: VDD = 2.0 to 3.3 V Low current dissipation: 1 µA Max. (at standby) Custom codes: 65,536 (set by external diodes and resistors) Data codes:.
µPD6121: 32 codes (single input), 3 codes (double input), expandable up to 64 codes through SEL pin.
µPD6122: 64 codes (single input), 3 codes (double input), expandable up to 128 codes through SEL pin.
µPD6121, 6122 are transmission code-compatible (NEC tran.
