UPD6379 2-CHANNEL 16-BIT D/A CONVERTER

DATA SHEET MOS INTEGRATED CIRCUIT µPD6379, 6379A, 6379L, 6379AL 2-CHANNEL 16-BIT D/A CONVERTER FOR AUDIO APPLICATION The µPD6379 and 6379A are 2-channel 16-bit D/A converters for digital audio signal demodulation. These D/A converters employ the resistor string conversion method which has been tested by existing model µPD6376 but they are more compact and require fewer external components than the µPD6376. In addition, low-voltage models, the µPD6379L and 6379AL (minimum operating supply vol.

UPD6379 Features

* Resistor string conversion method

* 0-point digital shift circuit

* × 4 oversampling Sampling frequency: 200 kHz MAX.

* Signal processing format for 2’s complement, MSB first, and backward justification data accommodated

* Left and right in-phase output

UPD6379 Datasheet (119.59 KB)

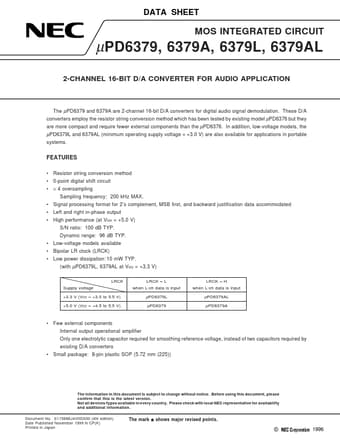

UPD6379 Datasheet Preview — Preview of UPD6379 PDF

Datasheet Details

Part number:

UPD6379

Manufacturer:

NEC

File Size:

119.59 KB

Description:

2-channel 16-bit d/a converter.
