* 1. Single-chip system Whereas previous 3-D Y/C separation systems were made up of a number of different chips (memory, etc.), the µPD64083 integrates all these functions on a single chip. Now, all that needs to be provided externally are several discrete circuits such as a picture I/O circuit, 20 MH
UPD64083
NEC
59.29 KB
3 dimensional y/c separation ic with on-chip memory.
NEW PRODUCTS 2

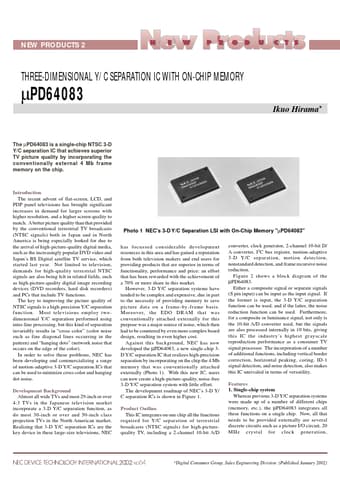

THREE-DIMENSIONAL Y/C SEPARATION IC WITH ON-CHIP MEMORY
µPD64083
Ikuo Hirama
*
The µPD64083 is a single-chip NTSC 3-D Y/C separa.
