UPD705100 Datasheet - NEC

UPD705100 V830TM 32-BIT MICROCONTROLLER

DATA SHEET MOS INTEGRATED CIRCUIT µPD705100 V830TM 32-BIT MICROCONTROLLER The µPD705100 (also called V830) is a microcontroller for incorporation use, which belongs to the V830 familyTM of the NEC original V800 seriesTM microcontrollers. The V830 can achieve high cost-performance for multimedia equipment, by integrating quick real-time responses, high-speed arithmetic/logical instructions, and functions suitable for individual applications. The following user’s manual describes details of th.

UPD705100 Features

* High-performance 32-bit architecture for incorporation use

* Built-in cache memory Instruction cache : 4K bytes Data cache

* Built-in RAM Instruction RAM Data RAM : 4K bytes : 4K bytes : 4K bytes

* 16-bit bus fixing function

* 16-bit bus system constructio

UPD705100 Datasheet (514.39 KB)

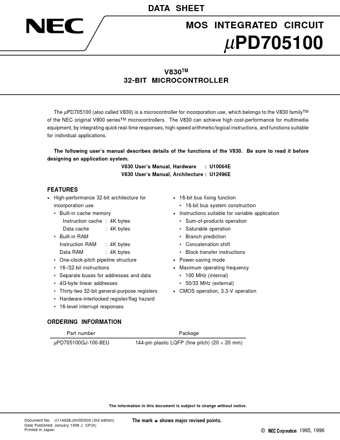

Preview of UPD705100 PDF
UPD705100 Datasheet Preview Page 2 UPD705100 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD705100

Manufacturer:

NEC

File Size:

514.39 KB

Description:

V830tm 32-bit microcontroller.
