UPD720130 Datasheet - NEC

UPD720130 USB2.0 to IDE Bridge

DATA SHEET MOS INTEGRATED CIRCUIT µPD720130 USB2.0 to IDE Bridge The µPD720130 is designed to perform a bridge between USB 2.0 and ATA/ATAPI. The µPD720130 complies with the Universal Serial Bus Specification Revision 2.0 full-/high-speed signaling and works up to 480 Mbps. The µPD720130 is integrated CISC processor, ATA/ATAPI controller, endpoint controller (EPC), serial interface engine (SIE), and USB2.0 transceiver into a single chip. The USB2.0 protocol and class specific protocol (bulk o.

UPD720130 Features

* Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 12/480 Mbps)

* Compliant with ATA/ATAPI-6 (LBA48, PIO Mode 0-4, Multi Word DMA Mode 0-2, Ultra DMA Mode 0-4)

* USB2.0 high-speed bus powered device capability

* Certified by USB implementers f

UPD720130 Datasheet (316.03 KB)

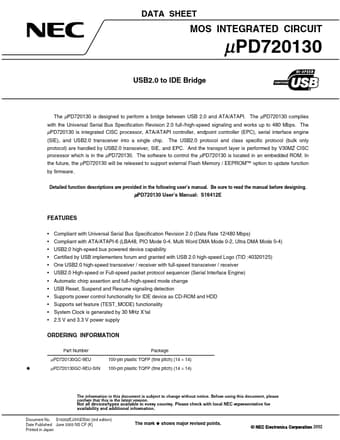

UPD720130 Datasheet Preview — Preview of UPD720130 PDF
