UPD76F0018 - Single Chip Microcontroller

UPD76F0018 Description

www.DataSheet4U.com DATA SHEET MOS INTEGRATED CIRCUIT µPD76F0018 V850E/VANStormTM 32-/16-BIT SINGLE-CHIP MICROCONTROLLER WITH CAN AND VAN INTERFACE.
The V850E/VANStorm single chip microcontroller, is a member of NEC's V850 32-bit RISC family, which match the performance gains attainable with RISC-b.

UPD76F0018 Features

* 32-bit RISC CPU with Harvard Architecture Full-VAN Interface: 2 channels Full-CAN Interface: 1 channel Serial Interfaces: 4 channels - 3-wire mode: 2 channels - UART mode: 2 channels Timers: 7 channels - 16/32-bit multi purpose timer/event counter: 3 channels

UPD76F0018 Applications

* The V850 CPU offers easy pipeline handling and programming, resulting in compact code size comparable to 16-bit CISC CPUs. The V850E/VANStorm offers an excellent combination of general purpose peripheral functions, like serial communication interfaces (UART, clocked SI), timers and measurement inpu

📥 Download Datasheet

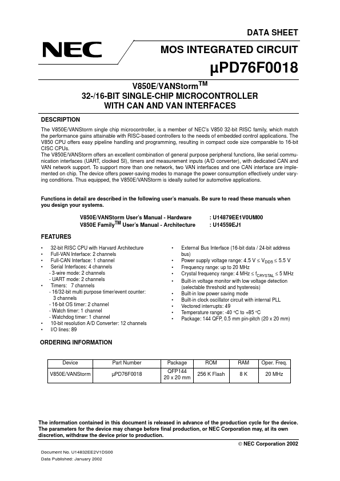

Preview of UPD76F0018 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPD76F0018
Manufacturer
NEC
File Size
519.83 KB
Datasheet
UPD76F0018_NEC.pdf
Description
Single Chip Microcontroller
