UPD78045F Description

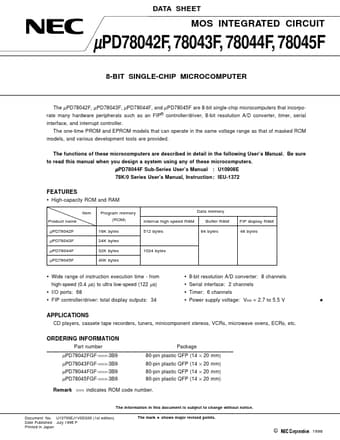

DATA SHEET MOS INTEGRATED CIRCUIT mPD78042F, 78043F, 78044F, 78045F 8-BIT SINGLE-CHIP MICROCOMPUTER The mPD78042F, mPD78043F, mPD78044F, and m PD78.

UPD78045F Features

* High-capacity ROM and RAM Item Product name Program memory (ROM) 16K bytes 24K bytes 32K bytes 40K bytes 1024 bytes Data memory Internal high-speed RAM 512 bytes Buffer RAM 64 bytes FIP display RAM 48 bytes mPD78042F mPD78043F mPD78044F mPD78045F
* Wide range of instruction exec

UPD78045F Applications

* 8-bit resolution A/D converter: 8 channels Serial interface: 2 channels Timer: 6 channels Power supply voltage: VDD = 2.7 to 5.5 V 5 CD players, cassete tape recorders, tuners, minicomponent stereos, VCRs, microwave ovens, ECRs, etc. ORDERING INFORMATION P

📥 Download Datasheet

UPD78045F Datasheet Preview — This datasheet PDF includes multiple part numbers: UPD78045F, UPD78042F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: UPD78045F, UPD78042F
Manufacturer: NEC
File Size: 510.33 KB
Datasheet: UPD78042F_NEC.pdf
Description: (UPD78042F-UPD78045F) 8 Bit Single-Chip Microcomputer
Note: This datasheet PDF includes multiple part numbers: UPD78045F, UPD78042F.
Please refer to the document for exact specifications by model.
