UPD8871 CCD LINEAR IMAGE SENSOR

UPD8871 Description

www.DataSheet4U.com DATA SHEET MOS INTEGRATED CIRCUIT µ PD8871 10680 PIXELS × 3 COLOR CCD LINEAR IMAGE SENSOR .
The µ PD8871 is a color CCD (Charge Coupled Device) linear image sensor which changes optical images to electrical signal and has the function of colo.

UPD8871 Features

* Valid photocell
* Photocell pitch
* Photocell size
* Line spacing
* Color filter
* Resolution : : 10680 pixels × 3 : 4 µm : 4 × 4 µm 2 : 32 µ m (8 lines) Red line - Green line, Green line - Blue line : Primary colors (red, green and blue), pigment f

📥 Download Datasheet

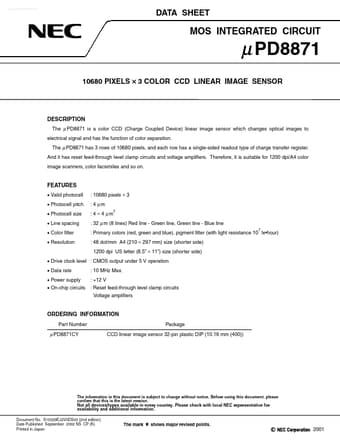

Preview of UPD8871 PDF
