VRC4171A, Graphics Display Controller

Using the VRC4171A Graphics Display Controller with the VR41xx Evaluation Board Application Note .
August 1999 The VR41xxTM 32-/64-bit MIPS® RISC microprocessors are members of NEC’s VR4100TM family of devices for Windows® CE handheld computer appli.

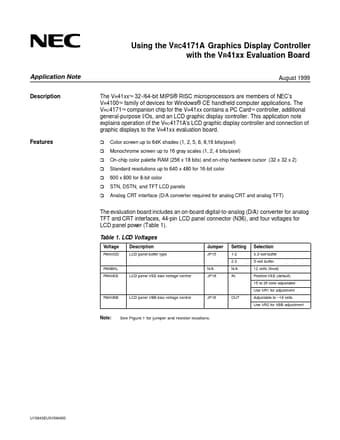

datasheet Preview Page 1 from Datasheet4u.com

VRC4171A-NEC.pdf

VRC4171A Datasheet Preview — Preview of VRC4171A PDF

Datasheet Details

Part number:

VRC4171A

Manufacturer:

NEC

File Size:

153.97 KB

Description:

Graphics Display Controller

Features

* Color screen up to 64K shades (1, 2, 5, 6, 8,16 bits/pixel) Monochrome screen up to 16 gray scales (1, 2, 4 bits/pixel) On-chip color palette RAM (256 x 18 bits) and on-chip hardware cursor (32 x 32 x 2) Standard resolutions up to 640 x 480 for 16-bit color 600 x 800 for 8-bit color STN, DSTN, and

Applications

* The VRC4171TM companion chip for the VR41xx contains a PC CardTM controller, additional general-purpose I/Os, and an LCD graphic display controller. This application note explains operation of the VRC4171A’s LCD graphic display controller and connection of graphic displays to the VR41xx evaluation
