NDR550 SAW Resonator

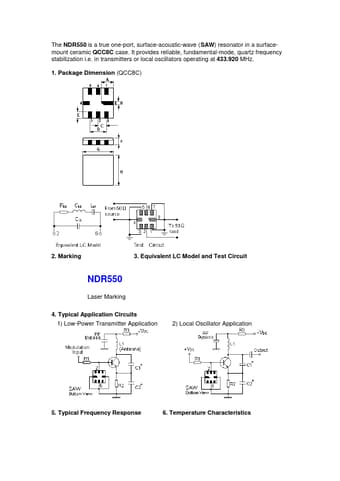

The NDR550 is a true one-port, surface-acoustic-wave ( SAW) resonator in a surfacemount ceramic QCC8C case. It provides reliable, fundamental-mode, quartz frequency stabilization i.e. in transmitters or local oscillators operating at 433.920 MHz. 1. Package Dimension (QCC8C) www.DataSheet.co.kr 2. Marking 3. Equivalent LC Model and Test Circuit NDR550 Laser Marking 4. Typical Application Circuits 1) Low-Power Transmitter Application 2) Local Oscillator Application 5. Typical Frequency Respo.
