HA1211 Datasheet - NEL Frequency

HA1211 (HA121x) Crystal Clock Oscillators

The HA-1210 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems. Supplying Pin 1 of the HA-1210 units with a logic “1" enables the output on Pin 5. In the disabled mode, Pin 5 presents a high impedance to the load. All units are resist.

HA1211 Features

* Wide frequency range

* 0.5MHz to 36MHz

* User specified tolerance available

* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

* Space-saving alternative to discrete component oscillators

* High shock resistance, to 3000g

HA1211_NELFrequency.pdf

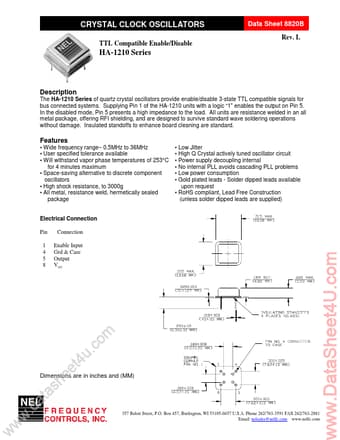

HA1211 Datasheet Preview — Preview of HA1211 PDF

Datasheet Details

Part number:

HA1211

Manufacturer:

NEL Frequency

File Size:

349.22 KB

Description:

(ha121x) crystal clock oscillators.
