SD-A2D4XXX - LVDS UHF CLOCK

NEL

📥 Download Datasheet

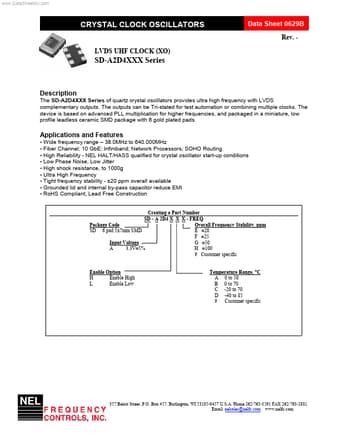

SD-A2D4XXX Datasheet Preview — Preview of SD-A2D4XXX PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SD-A2D4XXX
Manufacturer	NEL
File Size	380.86 KB
Description	LVDS UHF CLOCK
Datasheet	SD-A2D4XXX_NEL.pdf

SD-A2D4XXX Product details

Description

The SD-A2D4XXX Series of quartz crystal oscillators provides ultra high frequency with LVDS complementary outputs.

Features

Wide frequency range.
38.0MHz to 640.000MHz.
Fiber Channel; 10 GbE; Infiniband; Network Processors; SOHO Routing.
High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions.
Low Phase Noise, Low Jitter.
High shock resistance, to 1000g.
Ultra High Frequency.
Tight frequency stability - ±20 ppm overall available.
Grounded lid and internal by-pass capacitor reduce EMI.
RoHS Complian.
