S7M163635M Datasheet - NETSOL

S7M163635M 512Kx36 & 1Mx18 NTSRAM Flow-Through

The S7M163635M and S7M161835M are 18,874,368-bit Synchronous Static SRAMs. The NTSRAM, or Non-Turnaround Static Random Access Memory utilizes all bandwidth in any combination of operating cycles. Address, data inputs, and all control signals except output enable and linear burst order are synchroniz.

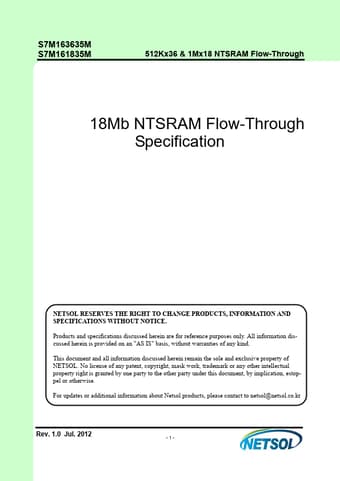

SSSS7777MMMM111166661331866833335555MMMM 551122KKxx3366 && 11MMxx1188 NNTTSSRRAAMM FFllooww TThhrroouugghh 18Mb NTSRAM Flow-Through Specification NETSOL RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties of any kind. This document and all information discussed herein remain the sole and exc.

S7M163635M Features

* Fully registered inputs and outputs for pipelined operation

* VDD = 2.5V(2.3V ~ 2.7V) or 3.3V(3.1V ~ 3.5V) Power Supply

* VDDQ = 2.3V~2.7V I/O Power Supply (VDD=2.5V) or 2.3V~3.5V I/O Power Supply (VDD=3.3V)

* Byte Writable Function

* Enable clock and suspen

S7M163635M Datasheet (431.46 KB)
