S7T4418U4M 144Mb Quadruple-II+ BL4 w/ ODT SRAM

The S7T4436U4M and S7T4418U4M are 150,994,944-bits Quadruple Synchronous Pipelined Burst SRAMs. They are organized as 4,194,304 words by 36bits for S7T4436U4M and 8,388,608 words by 18bits for S7T4418U4M. The Quadruple operation is possible by supporting DDR read and write operations through separat.

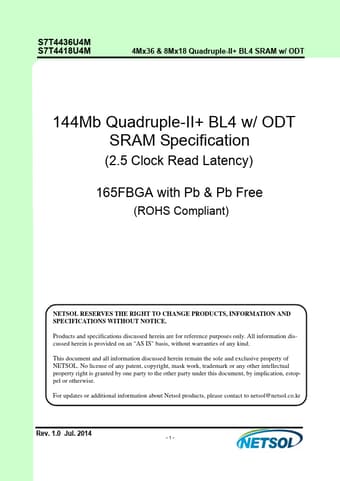

SS77TT44443366UU44MM SS77TT44441188UU44MM 44MMxx3366&&88MMxx1188QQuuaaddrruupplele III+I+BBLL44SSRRAAMMww//OODDTT 144Mb Quadruple-II+ BL4 w/ ODT SRAM Specification (2.5 Clock Read Latency) 165FBGA with Pb & Pb Free (ROHS Compliant) NETSOL RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties o.

S7T4418U4M Features

* 1.8V+0.1V/-0.1V Power Supply.

* DLL circuitry for wide output data valid window and future fre- quency scaling.

* I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O, 1.8V+0.1V/ -0.1V for 1.8V I/O.

* Separate independent read and write data ports with concurrent read an
