NXE-INM10C - MotherBoard

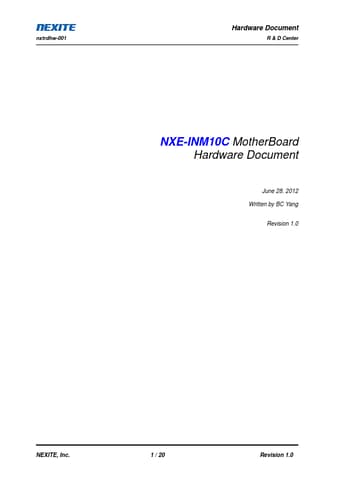

NXE-INM10C Datasheet Preview — Preview of NXE-INM10C PDF

Datasheet Details

Part number	NXE-INM10C
Manufacturer	NEXITE
File Size	1.16 MB
Description	MotherBoard
Datasheet	NXE-INM10C-NEXITE.pdf

NXE-INM10C Product details

Description

User’s Notice No part of this product, including the schematics and BIOS may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the express written permission of NEXITE Inc.except the document kept by the purchaser for backup purposes.© Copyright 2012 NEXITE Inc.All rights reserved NEXITE, Inc.2 / 20 Revision 1.0 nxtrdhw-001 Hardware Document R & D Center Contents of Table I.Introduction 1. Genera

Features

Maximum memory size: 4GB.
Support DDR3-1066, DDR3-800.
64-bit wide per channel.
1Gb and 2Gb memory technologies supported.
Support for Unbuffered non-ECC DDR3 devices.
Support 1Rx8 and 2Rx8 SO-DIMM configuration.
Support for DDR3 On-Die Termination (ODT).
Supports partial writes to memory using data mask signals (DM).
Support Intel Flex Memory Technology mode 2-3 BIOS  SPI Flash (16M-bit, 64Kbyte x 32blocks) The NXE-INM10C motherboard uses a AMI BIO.
