NX3212

DUAL CHANNEL HIGH SPEED 12V SYNCHRONOUS MOSFET DRIVER

NX3212 Features

* 1 ohm sink resistance for the lower gate driver capable of holding the lower MOSFET gate off during n SW node fast dv/dt rise time, preventing shoot through power loss. n FEATURES Two Channel Driver in single Package reduces Size and Cost Bus voltage operation from 4V to 26V 12V High side and Lo

NX3212 General Description

The NX3212 is a two channel low cost MOSFET driver n packaged in a thermally efficient 16 lead MLPQ package designed to drive four N-Channel MOSFETs in a n synchronous rectified 2 phase Step Down(BUCK) regu- n lator topology. This driver combined with other NEXSEM n controllers such as NX2511 or N.

NX3212 Datasheet (40.87 KB)

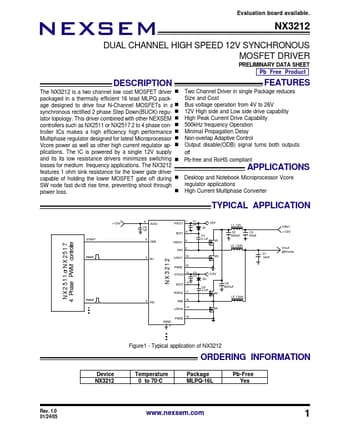

NX3212 Datasheet Preview — Preview of NX3212 PDF

Datasheet Details

Part number:

NX3212

Manufacturer:

NEXSEM

File Size:

40.87 KB

Description:

Dual channel high speed 12v synchronous mosfet driver.
