NHSW046AT Datasheet - NICHIA CORPORATION

NHSW046AT WHITE LED

Heat-Resistant Polymer （+） Epoxy Resin (with diffuser+phosphor) + Ag-plated Copper Alloy 0.0074g(TYP) K A Protection Device 4 SOLDERING NICHIA STS-DA1-4734 * Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max A.

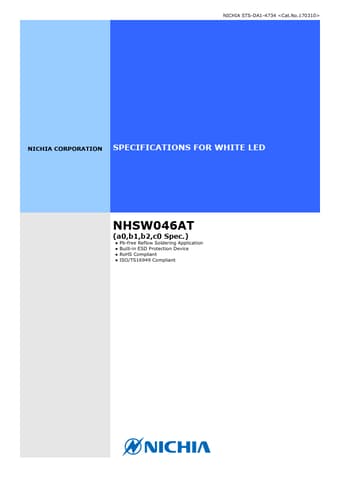

NICHIA STS-DA1-4734 NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NHSW046AT (a0,b1,b2,c0 Spec.) Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant ISO/TS16949 Compliant SPECIFICATIONS (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 10 Pulse Forward Current IFP 30 Allowable Reverse Current IR 85 Power Dissipation PD 32 Operating Temperature Topr -40~100 Storage Temper.

NHSW046AT Datasheet (326.16 KB)
