NSPG300D GREEN LED

Epoxy Resin + Ag-plated Copper Alloy 0.16g(TYP) * 。 LED。、、。 The tie bar cut-end surface exhibits exposed copper alloy base metal. Care must be taken to handle the LEDs, as it may contain sharp parts such as lead, and can cause injury. Φ3.8 4 NICHIA STS-DA1-2384 SOLDERING

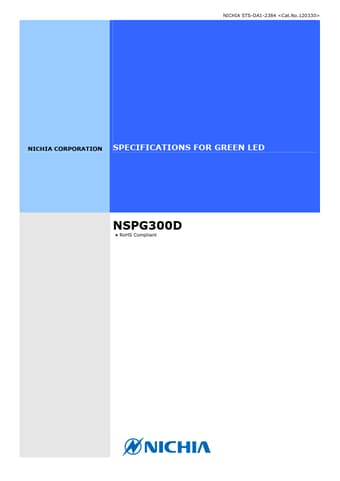

NICHIA STS-DA1-2384 NICHIA CORPORATION SPECIFICATIONS FOR GREEN LED NSPG300D RoHS Compliant http://www.Datasheet4U.com NICHIA STS-DA1-2384 SPECIFICATIONS (1) Absolute Maximum Ratings Item Forward Current Pulse Forward Current Reverse Voltage Power Dissipation Operating Temperature Storage Temperature Junction Temperature Symbol IF 35 IFP 110 VR 5 PD 126 Topr Tstg TJ 30~85 40~100 100 Absolute Maximum Rating Unit mA mA V mW °C °C °C Absolute Maxim.
