NSPW510DS-D1 - WHITE LED

NICHIA CORPORATION

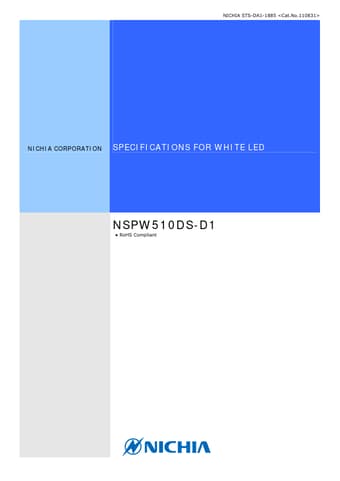

NSPW510DS-D1 Datasheet Preview — Preview of NSPW510DS-D1 PDF

Datasheet Details

Part number	NSPW510DS-D1
Manufacturer	NICHIA CORPORATION
File Size	207.88 KB
Description	WHITE LED
Datasheet	NSPW510DS-D1-NICHIACORPORATION.pdf

NSPW510DS-D1 Product details

Description

Resin Materials () Epoxy Resin(partly using phosphor) Lead Frame Materials + Ag-plated Copper Alloy Weight 0.26g(TYP) 。 LED。、、。 The tie bar cut-end surface exhibits exposed copper alloy base metal.Care must be taken to handle the LEDs, as it may contain sharp parts such as lead, and can cause injury.0.3 0.3 Lead Standoff 1 4 SOLDERING NICHIA STS-DA1-1885 Recommended Hand Soldering Condition Temperature 350°C Max Soldering Time 3sec Max Po
