NCSB119T Datasheet - NICHIA

NCSB119T-NICHIA.pdf

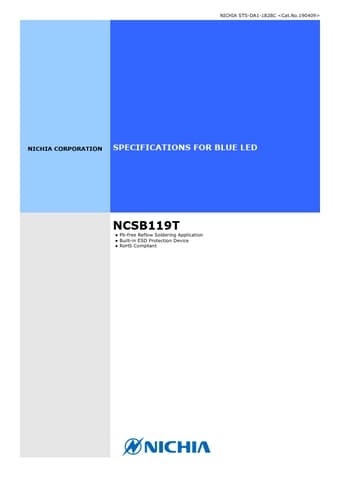

Preview of NCSB119T PDF
NCSB119T Datasheet Preview Page 2 NCSB119T Datasheet Preview Page 3

Datasheet Details

Part number:

NCSB119T

Manufacturer:

NICHIA

File Size:

332.60 KB

Description:

Blue led.

NCSB119T, BLUE LED

Ceramics Silicone Resin Silicone Resin Au-plated 0.033g (TYP) 1.4 K A Protection Device 4 SOLDERING NICHIA STS-DA1-1828C * Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 260°CMax 10sec Max

NICHIA STS-DA1-1828C NICHIA CORPORATION SPECIFICATIONS FOR BLUE LED NCSB119T Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-1828C (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 700 Pulse Forward Current IFP 1000 Allowable Reverse Current IR 85 Power Dissipation PD 2.66 Operating Temperature Topr -40~100 Storage Temperature
