NDV7375 - Violet Laser Diode

Datasheet Summary

Features

  • r>.
  • Optical Output Power: 1200mW.
  • Multi Transverse Mode.
  • Can Type:  9.0 mm Floating Mounted with Zener Diode .
  • Absolute Maximum Ratings  Item Symbol Absolute Maximum Ratings Unit Optical Output Power (Tc=25C) Po 1400 mW Allowable Reverse Current (Tc=25C) Ir (LD) 85 mA Storage Temperature Tstg -40 ~ 85 C Operating Case Temperature Tc.
  • 0 ~ 30 C.
  • Operating Temperature is recommended within 20 ~ 30 C range. Outline Dimension Un.

📥 Download Datasheet

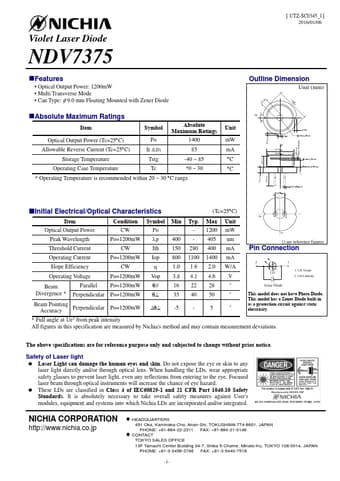

Datasheet preview – NDV7375

Datasheet Details

Part number NDV7375
Manufacturer NICHIA
File Size 266.72 KB
Description Violet Laser Diode
Datasheet download datasheet NDV7375 Datasheet
Additional preview pages of the NDV7375 datasheet.

📁 Similar Datasheet

  • NDV8401 - DVD on a Chip Processor (National Semiconductor)
Other Datasheets by NICHIA

Full PDF Text Transcription

Click to expand full text
Violet Laser Diode NDV7375 [ UTZ-SC0345_1] 2016/01/06 Features • Optical Output Power: 1200mW • Multi Transverse Mode • Can Type:  9.0 mm Floating Mounted with Zener Diode  Absolute Maximum Ratings  Item Symbol Absolute Maximum Ratings Unit Optical Output Power (Tc=25C) Po 1400 mW Allowable Reverse Current (Tc=25C) Ir (LD) 85 mA Storage Temperature Tstg -40 ~ 85 C Operating Case Temperature Tc *0 ~ 30 C * Operating Temperature is recommended within 20 ~ 30 C range. Outline Dimension Unit (mm) -0.+030 （90°） 1±0.1 Z+ φ7.3±0.2 φ6.65±0.1 (0.65) Emitting Point Emitting Point Reference Plane φ2.54±0.2 2-φ0.45±0.05 Initial Electrical/Optical Characteristics (Tc=25C) Item Condition Symbol Min Typ.
