NFSW757GT Datasheet (NICHIA)

NFSW757GT - WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.018g(TYP) * 。 Dimensions do not include mold flash.

* a>b、a。 The side with the larger distance is the cathode

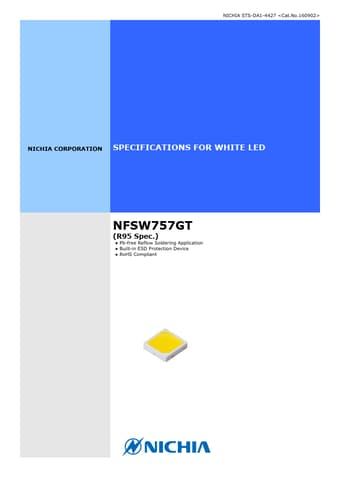

NICHIA STS-DA1-4427 NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NFSW757GT (R95 Spec.) Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-4427 (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 150 Pulse Forward Current IFP 200 Allowable Reverse Current IR 85 Power Dissipation PD 495 Operating Temperature Topr -40~100 Storage Te

NFSW757GT Datasheet - NICHIA

NFSW757GT - WHITE LED
