NJSW172CT - WHITE LED

Description

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Ceramics （+） Silicone Resin (with diffuser and phosphor) Au-plated 0.022g (TYP) K A Protection Device 4 SOLDERING NICHIA STS-DA1-5829C Recommended Reflow Soldering Condition(Lead-fre

Nichia Corporation

📥 Download Datasheet

NJSW172CT WHITE LED by NICHIA - Datasheet Preview — Datasheet preview – NJSW172CT

Datasheet Details

Part number	NJSW172CT
Manufacturer	Nichia Corporation
File Size	349.97 KB
Description	WHITE LED
Datasheet	NJSW172CT Datasheet
Additional preview pages of the NJSW172CT datasheet.

📁 Similar Datasheet

NJSW172T - WHITE LED (NICHIA CORPORATION)
NJSW107T - LED (NICHIA CORPORATION)
NJSW036AT - LED (NICHIA CORPORATION)
NJSW036LT - LED (NICHIA CORPORATION)
NJSW072T - LED (NICHIA CORPORATION)
NJS6930A - X-band Diode Limiter (Nisshinbo)
NJS8496 - C-band PLL LNB (Nisshinbo)
NJS8497 - C-band PLL LNB (Nisshinbo)
NJS8498 - C-band PLL LNB (Nisshinbo)
NJSA072T - TYPE AMBER LED (NICHIA CORPORATION)

Other Datasheets by NICHIA

NJSW172AT - WHITE LED
NJSW170CT - WHITE LED
NJSW170FT - WHITE LED
NJSW170GT - WHITE LED
NJSW123GT - WHITE LED
NJSW572BT - WHITE LED
NJSA172AT - LED
NJSA172AT-V1 - AMBER LED

Full PDF Text Transcription

Click to expand full text

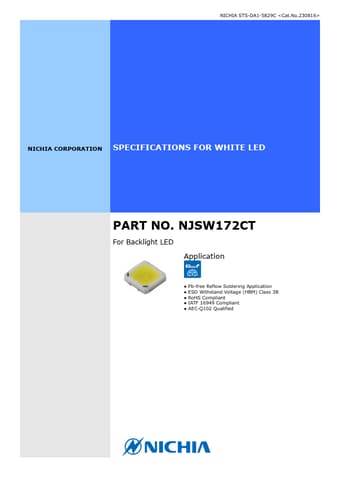

NICHIA STS-DA1-5829C NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED PART NO. NJSW172CT For Backlight LED Application ● Pb-free Reflow Soldering Application ● ESD Withstand Voltage (HBM) Class 3B ● RoHS Compliant ● IATF 16949 Compliant ● AEC-Q102 Qualified SPECIFICATIONS NICHIA STS-DA1-5829C (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 450 Pulse Forward Current IFP 900 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR Power Dissipation PD 85 1.52 Operating Temperature Topr -40~125 Storage Temperature Tstg -40~125 Junction Temperature TJ 150 * Absolute Maximum Ratings at TS=25°C. * IFP conditions with pulse width ≤10ms and duty cycle ≤10%.
