NS6W183AT Datasheet - NICHIA

NS6W183AT WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.13g(TYP) A Protection Device 4 SOLDERING * Recommended Reflow Soldering Condition(Lead-free Solder) 1 to .
NICHIA STS-DA1-1386B NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NS6W183AT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-1386B (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 800 Pulse Forward Current IFP 900 Allowable Reverse Current IR 85 Power Dissipation PD 2.88 Operating Temperature Topr -40~100 Storage Temperature.

NS6W183AT Datasheet (313.84 KB)

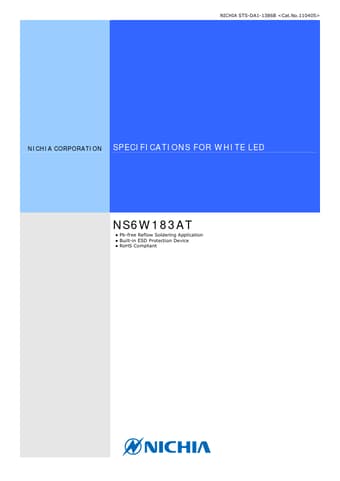

Preview of NS6W183AT PDF
NS6W183AT Datasheet Preview Page 2 NS6W183AT Datasheet Preview Page 3

Datasheet Details

Part number:

NS6W183AT

Manufacturer:

NICHIA

File Size:

313.84 KB

Description:

White led.
