NSSW146AT Datasheet - NICHIA

NSSW146AT - WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Au-plated Copper Alloy 0.0050g(TYP) * 。 Dimensions do not include mold flash or metal burr.

4 SOLDERING NICHIA STS-DA1-4800F

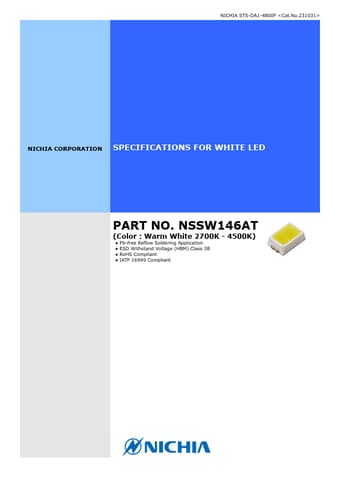

NICHIA STS-DA1-4800F NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED PART NO.

NSSW146AT (Color : Warm White 2700K - 4500K) Pb-free Reflow Soldering Application ESD Withstand Voltage (HBM) Class 3B RoHS Compliant IATF 16949 Compliant SPECIFICATIONS NICHIA STS-DA1-4800F (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 60 Pulse Forward Current IFP 200 ESD Withstand Voltage (HBM) VESD 8 Allowab

NSSW146AT-NICHIA.pdf

NSSW146AT Datasheet Preview — Preview of NSSW146AT PDF

Datasheet Details

Part number:

NSSW146AT

Manufacturer:

NICHIA

File Size:

435.76 KB

Description:

White led.
