NVSA219BT - LED

📥 Download Datasheet

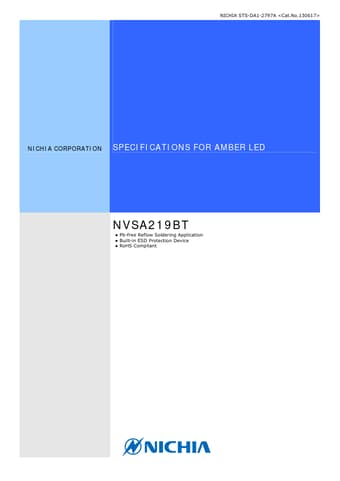

Preview of NVSA219BT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number NVSA219BT
Manufacturer NICHIA
File Size 283.09 KB
Description LED
Datasheet download datasheet NVSA219BT-NICHIA.pdf

NVSA219BT Product details

Description

Package Materials Encapsulating Resin Materials Electrodes Materials Lens Materials Die Heat Sink Materials Weight Ceramics () Silicone Resin (with phosphor) Au-plated Silicone Resin Au-plated 0.032g (TYP) KA Die Heat Sink Protection Device 4 0.4 1.2 1.9 3.3 0.5 SOLDERING Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 120sec Max 260°CMax 10sec Max Recommended Soldering Pad Pattern 0.5
