2SC1815 - SOT-23 Plastic-Encapsulate NPN Transistors

Datasheet Summary

Features

  • ※ Collector Current: Ic=150mA ※ Power Dissipation 1.BASE 2.

📥 Download Datasheet

Datasheet preview – 2SC1815

Datasheet Details

Part number 2SC1815
Manufacturer NIGE
File Size 698.28 KB
Description SOT-23 Plastic-Encapsulate NPN Transistors
Datasheet download datasheet 2SC1815 Datasheet
Additional preview pages of the 2SC1815 datasheet.

📁 Similar Datasheet

  • 2SC1815 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC1815 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC1815 - NPN SILICON TRANSISTOR (UTC)
  • 2SC1815 - SILICON NPN TRANSISTORS (Central Semiconductor)
  • 2SC1815 - NPN Transistor (JCET)
  • 2SC1815 - Silicon Epitaxial Planar Transistor (GME)
  • 2SC1815 - NPN Transistors (Kexin)
  • 2SC1815 - NPN GENERAL PURPOSE SWITCHING TRANSISTOR (GOODWORK)
  • 2SC1815 - BIPOLAR NPN TRANSISTOR (Kingtronics)
  • 2SC1815-BL - SILICON NPN TRANSISTORS (Central Semiconductor)
Other Datasheets by NIGE

    Full PDF Text Transcription

    Click to expand full text

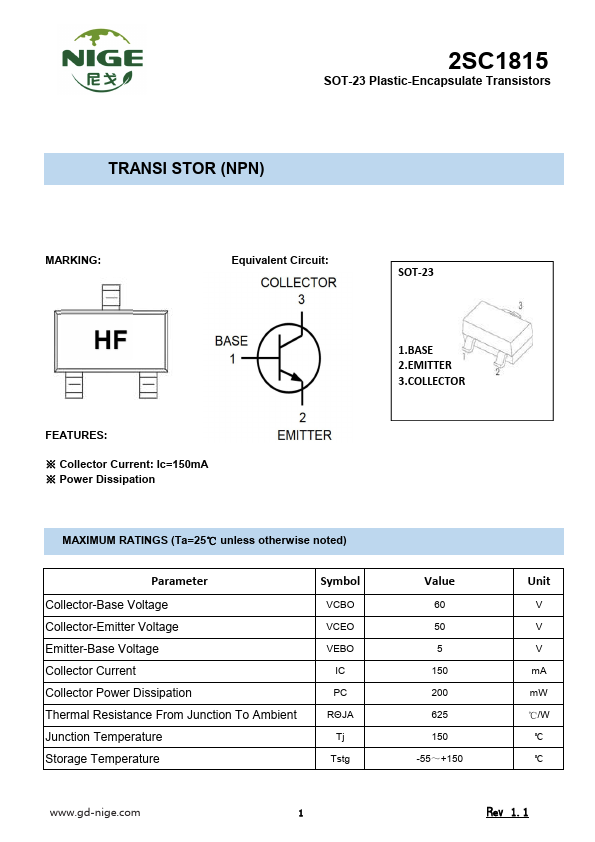

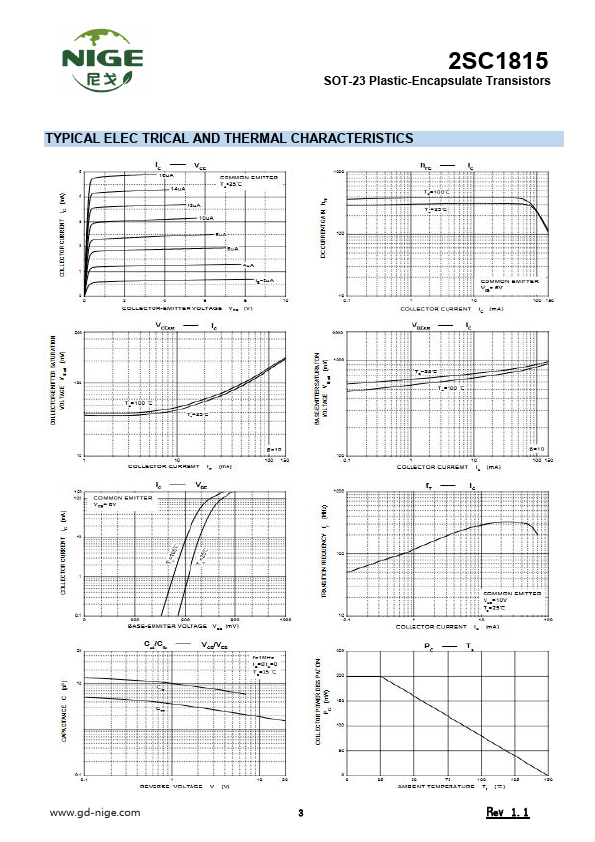

    2SC1815 SOT-23 Plastic-Encapsulate Transistors TRANSI STOR (NPN) MARKING: Equivalent Circuit: SOT-23 FEATURES: ※ Collector Current: Ic=150mA ※ Power Dissipation 1.BASE 2.EMITTER 3.COLLECTOR MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC RΘJA Tj Tstg www.gd-nige.com 1 Value 60 50 5 150 200 625 150 -55～+150 Unit V V V mA mW ℃/W ℃ ℃ Rev 1.
