NW19M12WA - Frequency Timing and Translation Modules

Product Overview

NIHON DEMPA KOGYO

Part number	NW19M12WA
Manufacturer	NIHON DEMPA KOGYO
File Size	117.27 KB
Description	Frequency Timing and Translation Modules
Datasheet	NW19M12WA Datasheet
Additional preview pages of the NW19M12WA datasheet.

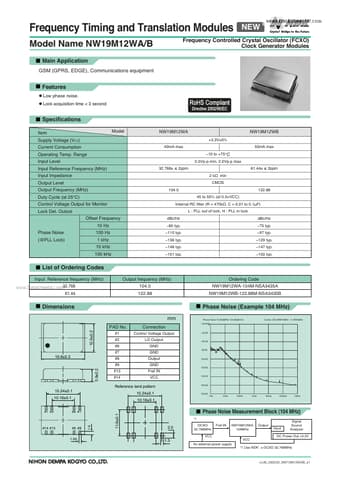

l Low phase noise. l Lock acquisition time < 3 second n Specifications Item Supply Voltage (VCC) Current Consumption Operating Temp. Range Input Level Input Reference Frequency (MHz) Input Impedance Output Level Output Frequency (MHz) Duty Cycle (at 25°C) Control Voltage Output for Monitor Lock Det. Outout Offset Frequency 10 Hz Phase Noise (@PLL Lock) 100 Hz 1 kHz 10 kHz 100 kHz dBc/Hz.
80 typ.
110 typ.
136 typ.
148 typ.
151 typ. 104.0 45 to 55% (at.
