TD422BL N-Channel Enhancement Mode Field Effect Transistor

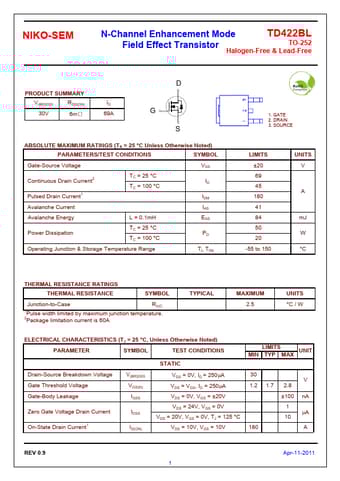

NIKO-SEM N-Channel Enhancement Mode TD422BL Field Effect Transistor TO-252 Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 30V 6mΩ ID 69A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate-Source Voltage Continuous Drain Current2 Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy L = 0.1mH Power Dissipation TC = 25 °C TC = 100 °C Operating Junction & Storage Temperature Range VGS .
