TRV4-1U-D-3V Datasheet - NINGBO TIANBO GANGLIAN ELECTRONICS

TRV4-1U-D-3V Relay

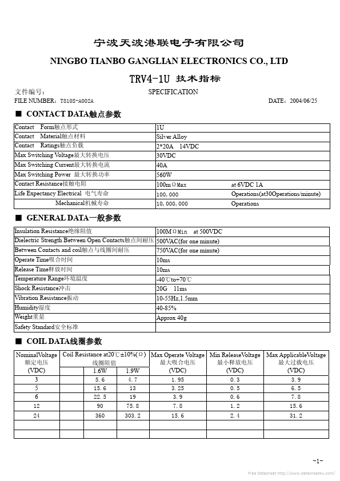

NINGBO TIANBO GANGLIAN ELECTRONICS CO., LTD TRV4-1U ： FILE NUMBER：T810S-A002A SPECIFICATION DATE：2004/06/25 CONTACT DATA Contact Contact Contact Form Material Ratings 1U Silver Alloy 2 20A 14VDC 30VDC 40A 560W 100mΩMax 100,000 10,000,000 at 6VDC 1A Operations(at30Operations/minute) Operations Max Switching Voltage Max Switching Current Max Switching Power Contact Resistance Life Expectancy Electrical Mechanical GENERAL DATA Insulation Resistance 100MΩMin at 500VDC Dielec.

TRV4-1U-D-3V Datasheet (242.75 KB)
