NJU3610 1bit Delta-Sigma Stereo ADC

The NJU3610 is the stereo Analog to Digital Convector (ADC) that covers from 8 to 192 kHz sampling frequency. The NJU3610 provides 1bit Delta-Sigma technology with high accuracy and low power consumption. The analog inputs are differential signal and stereo 4-1 selectors are provided. The NJU3610 pr.

NJU3610 Features

* NJU3610FR3 1bit Delta-Sigma stereo ADC 64fs over sampling (MCK=256fs, 384fs) 32fs over sampling (MCK=128fs) Digital Filter High-pass filter Stereo 4-1 selectors Sampling Rate : 8 to 192kHz Dynamic Range : 100dB(typ@3.3V, 96kHz) S/N : 100dB(typ@3.3V, 96kHz) S/(N+D) : 90dB(typ@3.3V, 48kHz, -1.0dBFS)

NJU3610_NJR.pdf

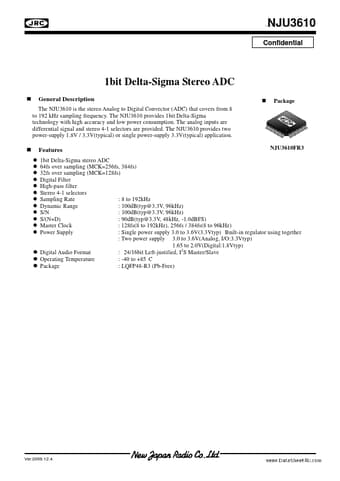

Preview of NJU3610 PDF
NJU3610 Datasheet Preview Page 2 NJU3610 Datasheet Preview Page 3

Datasheet Details

Part number:

NJU3610

Manufacturer:

NJR

File Size:

284.55 KB

Description:

1bit delta-sigma stereo adc.
