MB2411A2x0x-xx (MB2400 Series) Distinctive Characteristics

FOR TYPICAL ORDERING EXAMPLE MB2411E1W01-FA Black .201” (5.1mm) Diameter Cap .285” (7.24mm) Threaded Bushing with D Flat SPDT ON-(ON) Circuit Silver Contacts with 3-Amp Rating Solder Lug Terminals NKK Switches * email: sales@nkkswitches.com * Phone (480) 991-0942 * Fax (.

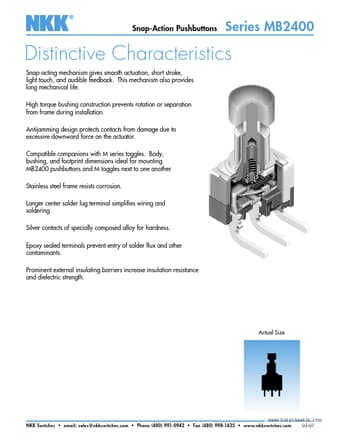

Snap-Action Pushbuttons www.DataSheet4U.com Series MB2400 Distinctive Characteristics Snap-acting mechanism gives smooth actuation, short stroke, light touch, and audible feedback. This mechanism also provides long mechanical life. High torque bushing construction prevents rotation or separation from frame during installation. Antijamming design protects contacts from damage due to excessive downward force on the actuator. Compatible companions with M series toggles. Body, bushing, and footpri.

MB2411A2x0x-xx Features

* 0 (2.0) Typ .079 MB2461E1W01-FA HARDWARE Standard Hardware
