23LM-C055V, 23LM-C213V Datasheet - NMB

23LM-C055V hybrid motors

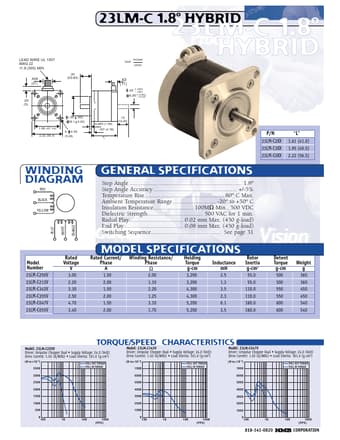

LEAD WIRE UL 1007 AWG 22 11.8 (300) MIN .826 (21) .81 (20.64) .20 (5) 2323LM-C 1.82º H3YLBRMID -C 1.8º HYBRID Unit: inches (mm) .43 (11) .25 + - .0000 .0005 ( 6.35 + - 00..000102) 1.86 (47.14) 2.22 (56.4) 1.50 .002 ( 38.1 0.05) 4- 0.20 (5.08) WINDING DIAGRAM RED BLACK YELLOW .75 (19.05) 0.063 (1.59) .187 (4.76) “L” P/N 23LM-C2XX 23LM-C3XX 23LM-C0XX “L” 1.61 (41.0) 1.95 (49.5) 2.22 (56.5) GENERAL SPECIFICATIONS Step Angle 1.8º Step Angle Accuracy +/-5% Temperature Rise 80º C M.

23LM-C213V-NMB.pdf

23LM-C055V Datasheet Preview — This datasheet PDF includes multiple part numbers: 23LM-C055V, 23LM-C213V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

23LM-C055V, 23LM-C213V

Manufacturer:

NMB

File Size:

237.85 KB

Description:

Hybrid motors.

Note:

This datasheet PDF includes multiple part numbers: 23LM-C055V, 23LM-C213V.
Please refer to the document for exact specifications by model.
