23LM-C202V Datasheet - NMB

23LM-C202V Motors

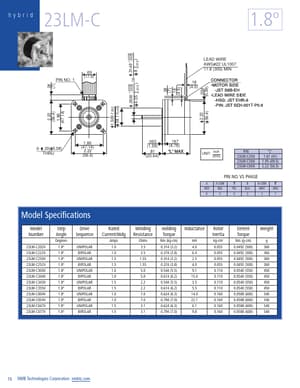

hybrid 23LM-C .3149 +.0000 .2500 +.0000 -.0005 -.0005 OR 0 0 ( 8 -0.013 ) ( 6.35 -0.013 ) 1.8º LEAD WIRE AWG#22 UL1007 11.8 (300) MIN .18 (4.5) PIN NO. 1 .28 (7) .69 (17.5) 1.500 - .002 ( 38.1 - 0.05) 2.22 (56.4) 1.86 (47.14) + + 4- .20( 5.08) THRU 1.86 (47.14) 2.22 (56.4) .063 (1.59) .81 (20.64) .187 (4.76) UNIT: inch (mm) 2.22 ( 56.4) .004 (0.09) .28 (7) .18 (4.5) P/N 23LM-C2XX 23LM-C3XX 23LM-C0XX “L” 1.61 (41) 1.95 (49.5) 2.22 (56.5) PIN NO. VS PHASE A RED 6 A COM BLK 5 A YEL.

23LM-C202V Datasheet (93.65 KB)

23LM-C202V Datasheet Preview — Preview of 23LM-C202V PDF

Datasheet Details

Part number:

23LM-C202V

Manufacturer:

NMB

File Size:

93.65 KB

Description:

Motors.
