23LM-C353U Datasheet - NMB

23LM-C353U Motors

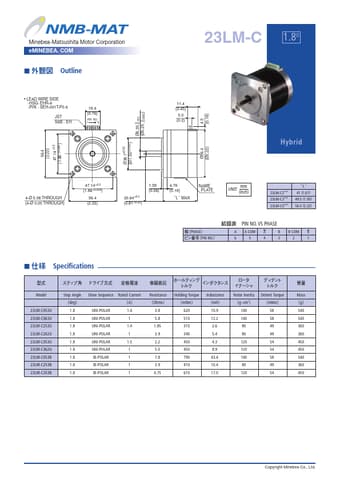

Minebea-Matsushita Motor Corporation eMINEBEA. COM 23LM-C 1.80 Outline LEAD WIRE SIDE -HSG: EHR-6 -PIN : SEH-001T-P0.6 JST S6B - EH 0 Ø6.35 0.013 0 (Ø0.25 0.0005 ) PIN NO. 1 6 5.0 (0.2) 4.5 (0.18) 19.4 (0.76) 11.4 (0.45) Ø38.1±0.05 (Ø1.50 ±0.002) 47.14 ±0.2 (1.86 ±0.008 ) Hybrid Ø56.4 (Ø2.22) 1.59 (0.06) 4.76 (0.19) ``L´´ MAX 56.4 (2.22) 47.14 ±0.2 (1.86 ±0.008) 4-Ø 5.08 THROUGH (4-Ø 0.20 THROUGH) 56.4 (2.22) 20.64 ±0.5 (0.81 ±0.02 ) + NAME PLATE UNIT.

23LM-C353U Datasheet (72.37 KB)
