CML Datasheet - NTE Electronics

CML MULTILAYER (MONOLYTHIC) CERAMIC

MULTILAYER (MONOLYTHIC) CERAMIC CML SERIES The CML Series is a range of radial lead conformally coated non polarized multilayer ceramic capacitors. These flame retardant capacitors are most commonly used for filtering, coupling, and bypass applications. MECHANICAL SPECIFICATIONS (Figure 1) 50 Volt (Z5U) Series Dimensions (mm) Cap µf .01 .015 .022 .033 .047 .068 .10 .15 .22 .33 .47 .68 1.0 1.5 2.2 T 3.175 3.175 3.175 3.175 3.175 3.175 3.175 3.175 3.175 3.175 3.175 3.810 3.810 3.810 3.81.

CML_NTEElectronics.pdf

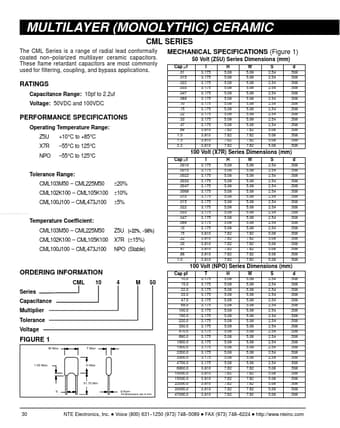

Preview of CML PDF

Datasheet Details

Part number:

CML

Manufacturer:

NTE Electronics

File Size:

44.12 KB

Description:

Multilayer (monolythic) ceramic.
