NTE30031 - (NTE30030 - NTE30036) Light Emitting Diode

This page provides the datasheet information for the NTE30031, a member of the NTE30030 (NTE30030 - NTE30036) Light Emitting Diode family.

Features

  • D All Plastic Mold Type w/Water Clear Lens: NTE30030 (Yellow Green, AllGaP/GaAs) NTE30031 (Pure Green, GalnN/GaN) NTE30032 (Yellow, AllnGaP/GaAs) NTE30033 (Orange, AllnGaP/GaAs) NTE30034 (Deep Red, GaAlAs/GaAlAs) NTE30035 (Amber, AllGaP/GaAs) NTE30036 (Blue, GalnN/GaN) NTE30044 (White, GalnN/GaN) Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Reverse Voltage, VR.

📥 Download Datasheet

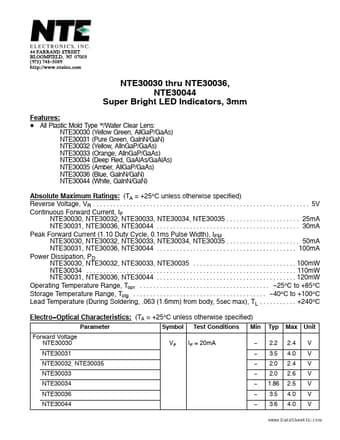

Datasheet preview – NTE30031

Datasheet Details

Part number NTE30031
Manufacturer NTE Electronics
File Size 87.13 KB
Description (NTE30030 - NTE30036) Light Emitting Diode
Datasheet download datasheet NTE30031 Datasheet
Additional preview pages of the NTE30031 datasheet.

📁 Similar Datasheet

  • NTE300 - Silicon Complementary Transistors Audio Power Amplifier (NTE)
  • NTE3000 - Light Emitting Diode (NTE)
  • NTE30001 - Infrared Emitting Diode (NTE)
  • NTE3001 - Light Emitting Diode (NTE)
  • NTE3007 - Discrete LED Indicators (NTE)
  • NTE30 - Silicon Complementary Transistors (NTE)
  • NTE3011 - Discrete LED Indicators (NTE)
  • NTE3016 - GaP Light.Emitting Diode (NTE)
  • NTE3017 - Infrared Emitting Diode (NTE)
  • NTE3020 - Light Emitting Diode (LED) (NTE)
Other Datasheets by NTE Electronics
  • NTE30030 - (NTE30030 - NTE30036) Light Emitting Diode
  • NTE30032 - (NTE30030 - NTE30036) Light Emitting Diode
  • NTE30033 - (NTE30030 - NTE30036) Light Emitting Diode
  • NTE30034 - (NTE30030 - NTE30036) Light Emitting Diode
  • NTE30035 - (NTE30030 - NTE30036) Light Emitting Diode
  • NTE30036 - (NTE30030 - NTE30036) Light Emitting Diode
  • NTE30037 - (NTE30037 - NTE30043) Light Emitting Diode
  • NTE30038 - (NTE30037 - NTE30043) Light Emitting Diode

Full PDF Text Transcription

Click to expand full text
NTE30030 thru NTE30036, NTE30044 Super Bright LED Indicators, 3mm Features: D All Plastic Mold Type w/Water Clear Lens: NTE30030 (Yellow Green, AllGaP/GaAs) NTE30031 (Pure Green, GalnN/GaN) NTE30032 (Yellow, AllnGaP/GaAs) NTE30033 (Orange, AllnGaP/GaAs) NTE30034 (Deep Red, GaAlAs/GaAlAs) NTE30035 (Amber, AllGaP/GaAs) NTE30036 (Blue, GalnN/GaN) NTE30044 (White, GalnN/GaN) Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Reverse Voltage, VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Continuous Forward Current, IF NTE30030, NTE30032, NTE30033, NTE30034, NTE30035 . . . . . . . . . . . . . . . . . . . . . . 25mA NTE30031, NTE30036, NTE30044 . . . . . . . . . . . . . . . . . . . . . . . . .
