NTE7004 - Integrated Circuit Electronic Channel Select System Control

Datasheet Summary

Description

The NTE7004 contains CPU/PLL excluded peripheral circuits such as band switch, +5V power supply (with RST), sync detector, low

pass filter for color TV/VCR frequency synthesizer channel select system use.

Input, 4 Output) D Video Signal, F

Features

D The Band Switch Truth Table can be changed in a short period of time at the user’s option. D The Band Switch is of PNP output type which need not be driven externally. D The OP Amp for Low.
Pass Filter is excellant in pulse response because of it’s High.
Impedance Input Pin. Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Allowable Power Dissipation (TA ≤ +65°C), Pdmax.
770mW Operating Temperature Ra.

Datasheet Details

Part number	NTE7004
Manufacturer	NTE Electronics
File Size	29.84 KB
Description	Integrated Circuit Electronic Channel Select System Control
Datasheet	NTE7004 Datasheet

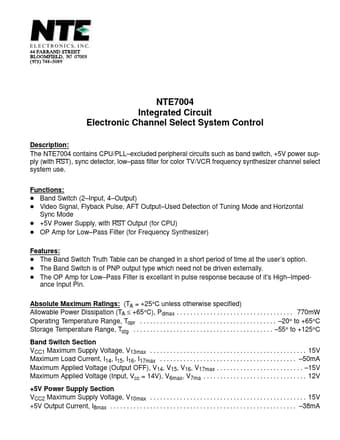

Additional preview pages of the NTE7004 datasheet.

📁 Similar Datasheet

NTE7011 - 20W Audio Power Amplifier Circuit (NTE)

NTE7059 - Dual BTL 14W Audio Power Amplifier (NTE)

NTE7113 - Dual Audio Power Amplifier (NTE)

NTE7123 - Integrated Circuit Sync Deflection Circuit (NTE)

NTE7129 - Integrated Circuit IF Signal Processing (Super PLL-II VIF SIF) Circuit (NTE)

NTE7173 - Integrated Circuit 1.5A Step-Up/Down Inverting Switching Regulator (NTE)

NTE7173SM - Integrated Circuit 1.5A Step-Up/Down Inverting Switching Regulator (NTE)

NTE7178 - Module-3 Channel Convergence Correction Circuit (NTE)

NTE7179 - Module-3 Channel Convergence Correction Circuit (NTE)

NTE7180 - Module-3 Channel Convergence Correction Circuit (NTE)

Full PDF Text Transcription

Click to expand full text

NTE7004 Integrated Circuit Electronic Channel Select System Control Description: The NTE7004 contains CPU/PLL–excluded peripheral circuits such as band switch, +5V power supply (with RST), sync detector, low–pass filter for color TV/VCR frequency synthesizer channel select system use. Functions: D Band Switch (2–Input, 4–Output) D Video Signal, Flyback Pulse, AFT Output–Used Detection of Tuning Mode and Horizontal Sync Mode D +5V Power Supply, with RST Output (for CPU) D OP Amp for Low–Pass Filter (for Frequency Synthesizer) Features: D The Band Switch Truth Table can be changed in a short period of time at the user’s option. D The Band Switch is of PNP output type which need not be driven externally.
