NTE7110 - Integrated Circuit 3 Channel Analog Switch

Description

The NTE7110 is an integrated circuit in a 16

Lead DIP type package designed for use as an electronic switch in VCR and audio signal processing applications.

This device contains three channel two input switch circuits with each switch being controlled independently.

Features

  • D Low Offset Voltage at Output: 5mV Typ D Low Switching Noise D Wide Dynamic Range D Wide Frequency Range: 40MHz Typ D Low Crosstalk D High Speed Response: 0.2µs Typ D Low Power Consumption Absolute Maximum Ratings: Supply Voltage, VCC.
  • . . . . 14V Power Dissipation, PD.
  • . . . 1000mw Derate Ab.

📥 Download Datasheet

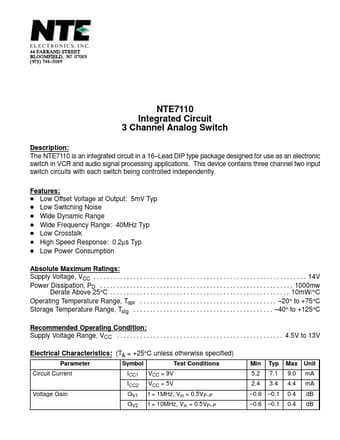

Datasheet preview – NTE7110

Datasheet Details

Part number NTE7110
Manufacturer NTE Electronics
File Size 22.36 KB
Description Integrated Circuit 3 Channel Analog Switch
Datasheet download datasheet NTE7110 Datasheet
