NTE7146 - Integrated Circuit Dual (12W + 12W) Stereo Amplifier w/Muting

Description

The NTE7146 is a class AB dual audio power amplifier assembled in an 11 Lead Staggered SIP type package specifically designed for high quality sound applications such as HI

FI music centers and stereo TV sets.

Features

  • D Wide Supply Voltage Range D High Output Power: 12W + 12W @ VS = 28V, RL = 8Ω, THD = 10% D Mute facility (Pop Free) with Low Consumption D AC Short Circuit Protection D Thermal Overload Protection Absolute Maximum Ratings: Supply Voltage, VS.
  • 35V Output Peak Current, IO Repetitive (f > 20Hz).

📥 Download Datasheet

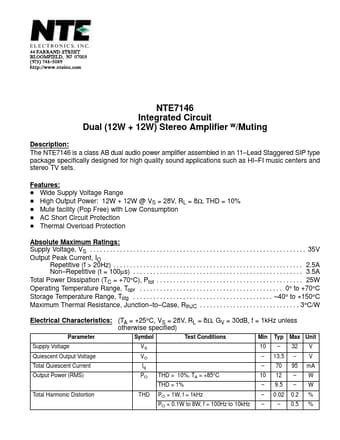

Datasheet preview – NTE7146

Datasheet Details

Part number NTE7146
Manufacturer NTE Electronics
File Size 26.07 KB
Description Integrated Circuit Dual (12W + 12W) Stereo Amplifier w/Muting
Datasheet download datasheet NTE7146 Datasheet
Additional preview pages of the NTE7146 datasheet.

📁 Similar Datasheet

  • NTE7113 - Dual Audio Power Amplifier (NTE)
  • NTE7123 - Integrated Circuit Sync Deflection Circuit (NTE)
  • NTE7129 - Integrated Circuit IF Signal Processing (Super PLL-II VIF SIF) Circuit (NTE)
  • NTE7173 - Integrated Circuit 1.5A Step-Up/Down Inverting Switching Regulator (NTE)
  • NTE7173SM - Integrated Circuit 1.5A Step-Up/Down Inverting Switching Regulator (NTE)
  • NTE7178 - Module-3 Channel Convergence Correction Circuit (NTE)
  • NTE7179 - Module-3 Channel Convergence Correction Circuit (NTE)
  • NTE7180 - Module-3 Channel Convergence Correction Circuit (NTE)
  • NTE7181 - Module-3 Channel Convergence Correction Circuit (NTE)
  • NTE7011 - 20W Audio Power Amplifier Circuit (NTE)
Other Datasheets by NTE Electronics
  • NTE714 - Integrated Circuit Chroma Subcarrier Regeneration
  • NTE7141 - Integrated Circuit Dual BIMOS Operational Amplifier w/MOSFET Input / Bipolar Output
  • NTE7142 - Integrated Circuit +5V-Powered / Multichannel RS-232 Driver/Receiver
  • NTE7143 - Integrated Circuit Audio Power Amplifier / 20W
  • NTE7144 - Integrated Circuit BIMOS Operational Amplifier w/MOSFET Input / Bipolar Output
  • NTE7145 - Intergrated Circuit 18W BTL x 2 Ch Audio Power Amplifier
  • NTE7147 - Integrated Circuit Full Bridge Current Driven Vertical Deflection Booster
  • NTE7148 - Integrated Circuit Color TV Single-Chip Signal Processor for NTSC Systems (PLL Detection)

Full PDF Text Transcription

Click to expand full text
NTE7146 Integrated Circuit Dual (12W + 12W) Stereo Amplifier w/Muting Description: The NTE7146 is a class AB dual audio power amplifier assembled in an 11–Lead Staggered SIP type package specifically designed for high quality sound applications such as HI–FI music centers and stereo TV sets. Features: D Wide Supply Voltage Range D High Output Power: 12W + 12W @ VS = 28V, RL = 8Ω, THD = 10% D Mute facility (Pop Free) with Low Consumption D AC Short Circuit Protection D Thermal Overload Protection Absolute Maximum Ratings: Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35V Output Peak Current, IO Repetitive (f > 20Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
