NTE902 Integrated Circuit Operational Transconductance Amplifier Description: The NTE902 has a differential input and a single–ended, push–pull, class A output. In additi...
View more extracted text
rential input and a single–ended, push–pull, class A output. In addition there is a bias input for linear gain control, whose transconductance (gm) is directly proportional to the amplifier bias current (IABC). Features: • Slew rate (unity gain, compensated): 50V/µs • • Flexible supply voltage range: ±2V to ±15V Fully adjustable gain: 0 to gm RL limit Applications: • Sample and hold • • • • Multiplex Voltage follower Multiplier Comparator Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) DC Supply Voltage (between V+ and V– Pins) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

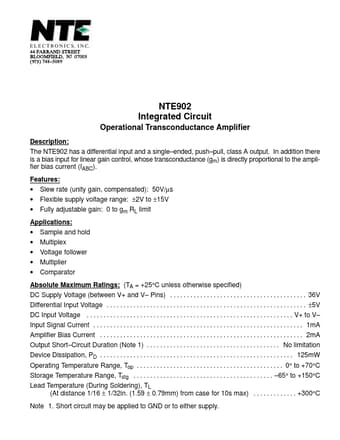

NTE902 Datasheet
