NTE904 - Integrated Circuit General Purpose Transistor Array (Two Isolated Transistors and a Darlington Connected Transistor Pair)

The NTE904 consists of four general purpose silicon NPN transistors on a common monolithic substrate in a 12 *Lead TO5 type metal can.

Two of the four transistors are connected in the Darlington configuration.

The substrate is connected to a separate terminal for maximum flexibility.

The tra

NTE904 Features

* D Matched Monolithic General Purpose Transistors D Current Gain Matched to ±10% D Base

* Emitter Voltage Matched to ±2mV D Operation from DC to 120MHz D Wide Operating Current Range D Low Noise Figure Applications: D General use in Signal Processing Systems in DC through VHF Range D Custom De

NTE904_NTEElectronics.pdf

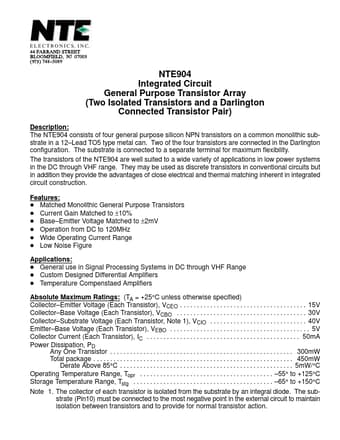

Preview of NTE904 PDF
