NTE907 - Integrated Circuit Diode Array

Datasheet Summary

Description

The NTE907 consists of six ultra

fast, low capacitance diodes on a common monolithic substrate.

Five of the diodes are independently accessible, with the sixth sharing a common terminal with the substrate.

Lead TO5 type package.

Features

  • D Excellent Reverse Recovery Time: 1ns typ. D Matched Monolithic Construction: VF matched within 5mV D Low Diode Capacitance: CD = 0.65pF typical at VR =.
  • 2V.

📥 Download Datasheet

Datasheet preview – NTE907

Datasheet Details

Part number NTE907
Manufacturer NTE Electronics
File Size 27.20 KB
Description Integrated Circuit Diode Array
Datasheet download datasheet NTE907 Datasheet
Additional preview pages of the NTE907 datasheet.

📁 Similar Datasheet

  • NTE91 - Silicon Complementary Transistors (NTE)
  • NTE917 - Integrated Circuit (NTE)
  • NTE93 - Silicon Complementary Transistors (NTE)
  • NTE954 - 4-Terminal Negative Adjustable Voltage Regulator (NTE)
  • NTE-247 - Silicon Complementary Transistors Darlington Power Amplifier (NTE)
  • NTE0303MC - DC/DC Converters (Murata)
  • NTE0305MC - DC/DC Converters (Murata)
  • NTE0309MC - DC/DC Converters (Murata)
  • NTE0312MC - DC/DC Converters (Murata)
  • NTE0315MC - DC/DC Converters (Murata)
Other Datasheets by NTE Electronics
  • NTE90 - Silicon Complementary Transistors General Purpose High Gain Amplifier
  • NTE902 - Integrated Circuit Operational Transconductance Amplifier
  • NTE903 - Integrated Circuit Operational Amplifier
  • NTE904 - Integrated Circuit General Purpose Transistor Array (Two Isolated Transistors and a Darlington Connected Transistor Pair)
  • NTE906 - Integrated Circuit Dual / High Frequency / Differential Amplifier
  • NTE909 - Integrated Circuits Operational Amplifier
  • NTE9093 - Integrated Circuit Diode Transistor Logic (DTL) Dual J-K Flip-Flop
  • NTE9094 - Integrated Circuit Diode Transistor Logic (DTL) Dual J-K Flip-Flop

Full PDF Text Transcription

Click to expand full text

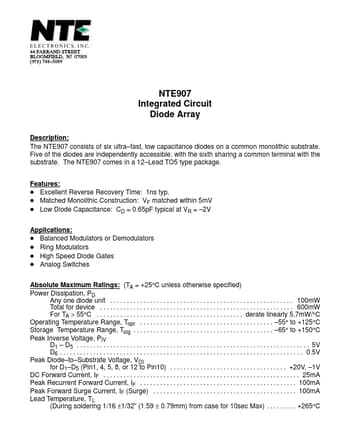

NTE907 Integrated Circuit Diode Array Description: The NTE907 consists of six ultra–fast, low capacitance diodes on a common monolithic substrate. Five of the diodes are independently accessible, with the sixth sharing a common terminal with the substrate. The NTE907 comes in a 12–Lead TO5 type package. Features: D Excellent Reverse Recovery Time: 1ns typ. D Matched Monolithic Construction: VF matched within 5mV D Low Diode Capacitance: CD = 0.65pF typical at VR = –2V Applications: D Balanced Modulators or Demodulators D Ring Modulators D High Speed Diode Gates D Analog Switches Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Power Dissipation, PD Any one diode unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
