NTE931 - 3-Terminal Positive Voltage Regulator

Datasheet Summary

Description

The NTE931 is a 3

terminal fixed positive voltage regulator in a TO3 type package capable of driving loads up to 3A.

New circuit design and processing techniques are used to provide the high output current without sacrificing the regulation characteristics of lower current devices.

Features

  • D D D D D D Output Current in Excess of 3A Internal Current and Thermal Limiting 0.01Ω Typical Output Impedance 7.5 Minimum Input Voltage 30W Power Dissipation 100% Electrical Burn.
  • In Absolute Maximum Ratings: Input Voltage, VIN.
  • . 20V Power Dissipation, PD.
  • Internally Limited Operati.

📥 Download Datasheet

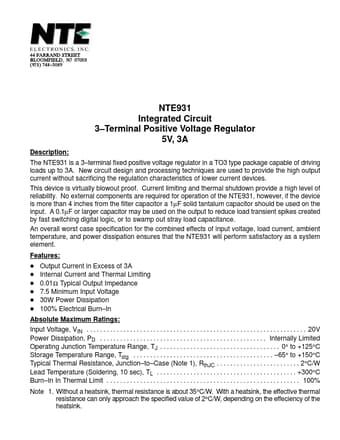

Datasheet preview – NTE931
