NTE1854M Integrated Circuit Dual Power Operational Amplifier

NTE1854M Description

NTE1854D/NTE1854M Integrated Circuit Dual Power Operational Amplifier .
The NTE1854D/NTE1854M is a monolithic dual. power operational amplifier which features a high current, low saturation voltage, flyback protect.

NTE1854M Features

* a high current, low saturation voltage, flyback protected output stage optimized for driving heavy inductive loads. Capable of operation in a single supply mode form as low as 4.5V up to 13.2V, the NTE1854D/NTE1854M is ideally suited for the computer peripheral environment, driving small motors, sol

📥 Download Datasheet

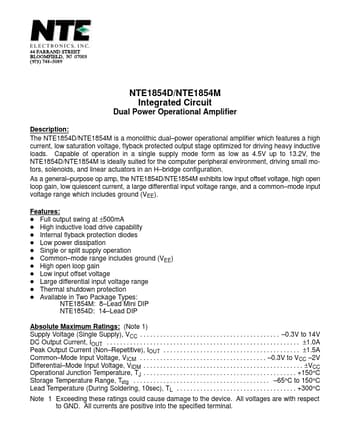

Preview of NTE1854M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NTE1854M
Manufacturer
NTE
File Size
27.21 KB
Datasheet
NTE1854M_NTEElectronics.pdf
Description
Integrated Circuit Dual Power Operational Amplifier
