NTE1929

3 Terminal Adjustable Positive Voltage Regulator

NTE1929 Features

* D Guaranteed 3A Output Current D Output Adjustable Between 1.2V and 33V D Load Regulation Typically 0.1% D Line Regulation Typically 0.005%/V D Internal Thermal Overload Protection D Internal Short

* Circuit Current Limiting Constant with Temperature D Floating Operation for High Voltage Appl

NTE1929 General Description

The NTE1929 is an adjustable 3

*terminal positive voltage regulator in a TO220 type package capable of supplying in excess of 3A over an output voltage range of 1.2V to 33V. This device employes internal current limiting, thermal shutdown, and safe area compensation making the it essentially.

NTE1929 Datasheet (26.08 KB)

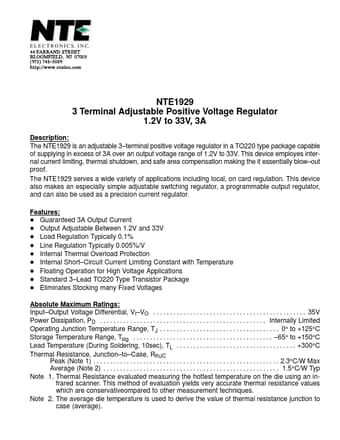

Preview of NTE1929 PDF

Datasheet Details

Part number:

NTE1929

Manufacturer:

NTE

File Size:

26.08 KB

Description:

3 terminal adjustable positive voltage regulator.
