NTE5005SM

Zener Diode

NTE5005SM Features

* D Zener Voltage 3.3V to 24V D SOT

* 23 Type Surface Mount Package Absolute Maximum Ratings: Maximim Repetitive Peak Forward Current, IFRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mA Maximim Repetitive Peak Working Current, IZRM . . . . . . . . . . . . . . . .

NTE5005SM Datasheet (19.58 KB)

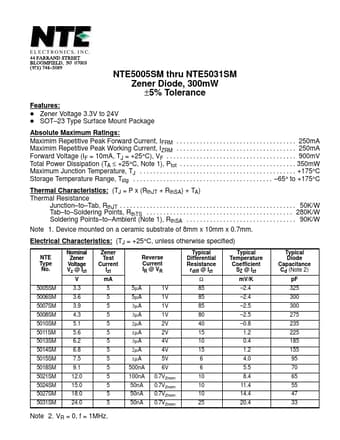

Preview of NTE5005SM PDF

Datasheet Details

Part number:

NTE5005SM

Manufacturer:

NTE

File Size:

19.58 KB

Description:

Zener diode.
