NTE5011T1, NTE5010T1 - (NTE5010T1 - NTE5021T1) Zener Diode

Datasheet Details

Part number	NTE5011T1, NTE5010T1
Manufacturer	NTE
File Size	44.86 KB
Description	(NTE5010T1 - NTE5021T1) Zener Diode

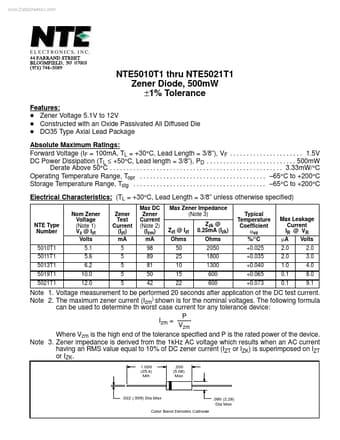

Datasheet	NTE5010T1_NTE.pdf
Note	This datasheet PDF includes multiple part numbers: NTE5011T1, NTE5010T1. Please refer to the document for exact specifications by model.

D Zener Voltage 5.1V to 12V D Constructed with an Oxide Passivated All Diffused Die D DO35 Type Axial Lead Package Absolute Maximum Ratings: Forward Voltage (IF = 100mA, TL = +30°C, Lead Length = 3/8”), VF.
. . 1.5V DC Power Dissipation (TL ≤ +50°C, Lead length = 3/8”), PD.
. . 500mW Derate Above 50°C.
. . 3.33mW/°C Operating Tem.
