NTE5311 - Single Phase Bridge Rectifier

Datasheet Summary

Features

  • D Ideal for Printed Circuit Board D Surge Overload Rating: 200A (Peak) Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified. Single Phase, Full Wave, 60Hz, Resistive or Inductive Load. For Capacitive Load, Derate Current by 20%) Maximum Recurrent Peak Reverse Voltage, PRV NTE5309.
  • . . 200V NTE5310.

📥 Download Datasheet

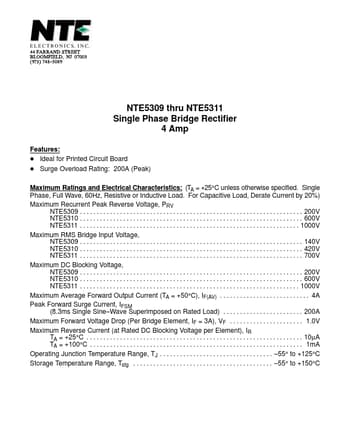

Datasheet preview – NTE5311

Datasheet Details

Part number NTE5311
Manufacturer NTE
File Size 16.49 KB
Description Single Phase Bridge Rectifier
Datasheet download datasheet NTE5311 Datasheet
Additional preview pages of the NTE5311 datasheet.

📁 Similar Datasheet

  • NTE53006 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53010 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53016 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE53020 - Silicon Bridge Rectifier (NTE Electronics)
  • NTE5390 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5391 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5392 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5393 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5394 - (NTE5390 - NTE5394) Silicon Bridge Rectifier (NTE Electronics)
  • NTE5550 - (NTE5550 - NTE5558) Silicon Controlled Rectifiers (NTE Electronics)
Other Datasheets by NTE
  • NTE5312 - Single Phase Bridge Rectifier
  • NTE5313 - Single Phase Bridge Rectifier 8 Amp
  • NTE5314 - Single Phase Bridge Rectifier 8 Amp
  • NTE5315 - Single Phase Bridge Rectifier 8 Amp
  • NTE5316 - Single Phase Bridge Rectifier 8 Amp
  • NTE5317 - Single Phase Bridge Rectifier
  • NTE5318 - Single Phase Bridge Rectifier
  • NTE53 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text
NTE5309 thru NTE5311 Single Phase Bridge Rectifier 4 Amp Features: D Ideal for Printed Circuit Board D Surge Overload Rating: 200A (Peak) Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified. Single Phase, Full Wave, 60Hz, Resistive or Inductive Load. For Capacitive Load, Derate Current by 20%) Maximum Recurrent Peak Reverse Voltage, PRV NTE5309 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V NTE5310 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE5311 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
